CYCLOPS
First in Class
EYEING THE FUTURE OF SETTING TOOL SOLUTIONS
Say farewell to disposable and field redressable wireline setting tools with Fortress Downhole Tools’ premier CYCLOPS Recycling Setting Tool Program. Our built-for-purpose, all-inclusive, paid-per-stage service model provides a unique and cost-efficient alternative to disposable and field redressable tools.
The most ESG-compliant setting tool, CYCLOPS is a gas-operated, oil-free tool designed with advanced setting tool technology. The self-bleeding tool eliminates pressure release on surface, and offers no hydrostatic limitations. With minimal waste of only three sets of seals, the CYCLOPS setting tool is also compatible with industry-standard power charges and firing heads. The setting tool undergoes an extensive QA/QC program, which includes post-rebuild leak test and QC checks before each deployment, as well as dimensional and magnetic particle inspections conducted at regularly scheduled intervals.
ADVANCED FEATURES
- Self-bleeding
- No Oil Required
- No Hydrostatic Limitations
- Patented Dual-dampening Stage System
- Pressure Balanced
FIRST IN CLASS RESULTS
- ZERO Fishing Jobs
- ZERO Soft-set Plugs
- ZERO Pre-set Plugs
- 100% Bleed Off Downhole
- Industry Leading ESG Operations
Our patented tool is built to withstand the most rigorous downhole conditions and features a robust design purposely over-engineered to exceed the highest safety standards and performs in high-pressure, high-temperature, highly deviated wells.
Fortress’ trained and SafeLand USA-certified personnel adhere to the strictest safety protocols while handling logistics, inspections, tool teardowns and rebuilds.
Along with our patented iFortress technology, we follow the most stringent quality assurance and quality control guidance for 100 percent traceability.

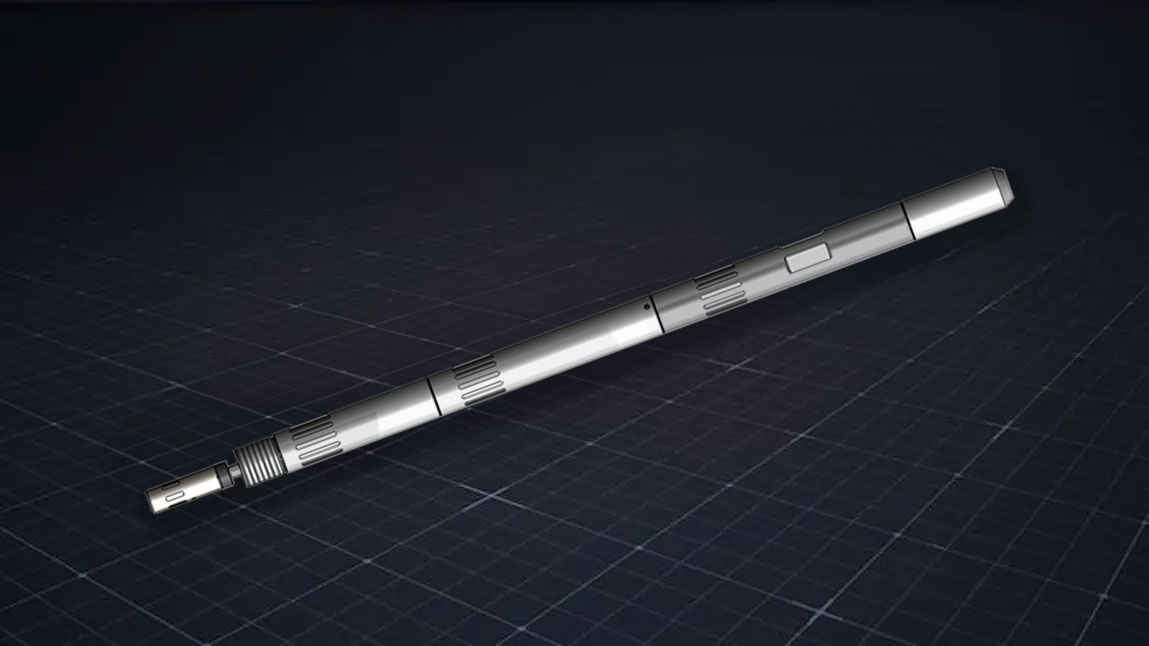

CYCLOPS Setting Tool Models
Model — ST2000
Length: 38.125”
Shear Force: 60,000 pounds
Weight: 73 pounds
Stroke Length: 10”
Operating Pressure: 20,000 PSI
Model — ST1000
Length: 33.67”
Shear Force: 40,000 pounds
Weight: 37 pounds
Stroke Length: 7”
Operating pressure: 20,000 PSI
CYCLOPS Compatibility
Fortress Downhole Tools provides custom solutions to meet the needs of each client. CYCLOPS offers compatibility with a large range of frac plug sets and power charges.
CYCLOPS Frac Plug Sets
| wdt_ID | Plug Provider | Model | Size | Material Type |
|---|---|---|---|---|
| 1 | Baker Hughes | Millite | 5.5 | Metallic Hybrid |
| 2 | Forum | ProDrill | 5.5 | Composite |
| 3 | Geo Dynamics | Evolve | 5.5 | Composite |
| 4 | Halliburton | Prime | 5.5 | Composite |
| 5 | Halliburton | Obsidian | 5.5 | Composite |
| 6 | Halliburton | Illusion | 4.5 | Dissolvable |
| 7 | Halliburton | Ultra | 4.5 | Composite |
| 8 | Hover | Fenix | 4.5, 5, & 5.5 | Composite |
| 9 | Innovex | Tomcat | 5.5 | Composite |
| 10 | Innovex | Bubba | 5.5 | Dissolvable |
CYCLOPS Power Charges
| wdt_ID | Power Charge Manufacturer | ST1000 | ST2000 |
|---|---|---|---|
| 1 | Diamondback | Baker 10 | 3 5/8" Compact |
| 2 | GEO Dynamics | Legacy 10 | Legacy 3 5/8" Compact |
| 3 | Hunting Titan | ||
| 4 | Baker Hughes | TrueStage |
Reliability Guaranteed
The CYCLOPS Setting Tool provides efficiency and reliability with every run. Fortress is proud to maintain a high success rate on thousands of runs downhole with zero fishing jobs, soft-set plugs, and pre-set plugs. We also have 100 percent bleed off downhole.
